U Clamp Assembly Features & Sizing
- Retains, Guides, Protects, and Uniformly Spaces Line Runs
- Attached w/2 Standard Fasteners to any Flat Surface Eliminates the use of Special Channels
- Clamp of Steel or Stainless Steel
- Cushion of Thermoplastic Elastomer
- Cushion Withstands Effects of Most Oils, Chemicals and Industrial Cleaning Compounds in Temperatures From -50°F to +275°F
| Steel Part # |
Stainless Part # |
Copper & Steel Tubing O.D. |
Copper Water Pipe (Nom.) |
Pipe Size (Nom.) |

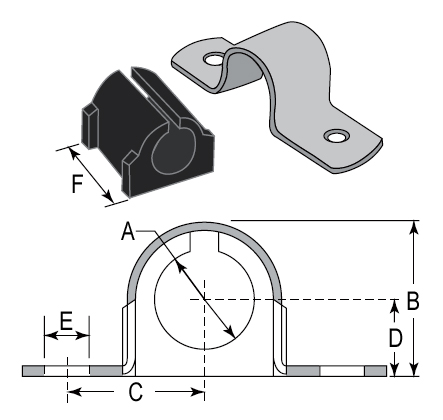

Dimensions (inches) | Hanging Design Load |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||||
| 004M007 | 004M007-SS | 1/4 | – | – | 0.25 | 0.48 | 0.60 | 0.22 | 0.26 | 0.78 | 50 |
| 006M008 | 006M008-SS | 3/8 | 1/4 | – | 0.37 | 0.62 | 0.66 | 0.31 | 0.81 | ||
| 008M011 | 008M011-SS | 1/2 | 3/8 | 1/4 | 0.50 | 0.81 | 0.83 | 0.40 | 0.98 | ||
| 010M013 | 010M013-SS | 5/8 | 1/2 | 3/8 | 0.62 | 0.93 | 0.85 | 0.46 | |||
| 012M015 | 012M015-SS | 3/4 | 5/8 | – | 0.75 | 1.02 | 0.90 | 0.50 | |||
| 014M017 | 014M017-SS | 7/8 | 3/4 | 1/2 | 0.87 | 1.12 | 1.03 | 0.53 | |||
| 016M019 | 016M019-SS | 1 | – | – | 1.00 | 1.24 | 1.04 | 0.59 | |||
| 018M020 | 018M020-SS | – | – | 3/4 | 1.05 | 1.40 | 1.11 | 0.70 | |||
| 018M021 | 018M021-SS | 1-1/8 | 1 | – | 1.12 | 1.40 | 1.17 | 0.70 | |||
| 020M024 | 020M024-SS | 1-1/4 | – | – | 1.25 | 1.60 | 1.20 | 0.77 | 1.56 | ||
| 021M026 | 021M026-SS | – | – | 1 | 1.31 | 1.71 | 1.28 | 0.81 | |||
| 022M026 | 022M026-SS | 1-3/8 | 1-1/4 | – | 1.37 | 1.71 | 1.28 | 0.83 | |||
| 024M028 | 024M028-SS | 1-1/2 | – | – | 1.50 | 1.85 | 1.36 | 0.90 | 200 | ||
| 026M030 | 026M030-SS | 1-5/8 | 1-1/2 | – | 1.62 | 1.98 | 1.43 | 0.96 | |||
| 027M032 | 027M032-SS | – | – | 1-1/4 | 1.66 | 2.12 | 1.55 | 0.99 | 0.34 | 400 | |
| 028M032 | 028M032-SS | 1-3/4 | – | – | 1.75 | 2.12 | 1.55 | 1.02 | |||
| 030M034 | 030M034-SS | 1-7/8 | – | 1-1/2 | 1.87 | 2.25 | 1.64 | 1.09 | |||
| 032M036 | 032M036-SS | 2 | – | – | 2.00 | 2.38 | 1.69 | 1.15 | |||
| 034M040 | 034M040-SS | 2-1/8 | – | – | 2.12 | 2.62 | 1.86 | 1.27 | |||
| 038M044 | 038M044-SS | 2-3/8 | – | 2 | 2.37 | 2.88 | 1.94 | 1.41 | |||
| 040M046 | 040M046-SS | 2-1/2 | – | – | 2.50 | 3.00 | 2.00 | 1.47 | |||
| 042M048 | 042M048-SS | 2-5/8 | 2-1/2 | – | 2.62 | 3.13 | 2.07 | 1.53 | |||
| 046M052 | 046M052-SS | 2-7/8 | – | 2-1/2 | 2.87 | 3.38 | 2.19 | 1.65 | |||
| 050M056 | 050M056-SS | 3-1/8 | 3 | – | 3.12 | 3.68 | 2.32 | 1.78 | |||
| 056M062 | 056M062-SS | 3-1/2 | – | 3 | 3.50 | 4.06 | 2.50 | 1.97 | |||
| 058M064 | 058M064-SS | 3-5/8 | 3-1/2 | – | 3.62 | 4.19 | 2.57 | 2.03 | 700 | ||
| 064M072 | 064M072-SS | 4 | – | 3-1/2 | 4.00 | 4.68 | 2.82 | 2.28 | |||
| 066M074 | 066M074-SS | 4-1/8 | 4 | – | 4.12 | 4.84 | 3.05 | 2.34 | 0.43 | 800 | |
| 072M080 | 072M080-SS | 4-1/2 | – | 4 | 4.50 | 5.22 | 3.24 | 2.53 | |||
| 082M090 | 082M090-SS | 5-1/8 | 5 | – | 5.12 | 5.82 | 3.55 | 2.84 | |||
| 089M096 | 089M096-SS | – | – | 5 | 5.56 | 6.31 | 4.00 | 3.06 | 0.56 | 1,200 | |
| 098M106 | 098M106-SS | 6-1/8 | 6 | – | 6.12 | 6.90 | 4.31 | 3.34 | |||
| 106M114 | 106M114-SS | – | – | 6 | 6.62 | 7.39 | 4.56 | 3.58 | |||
