Male 37° Flare Junction Adapter Features & Sizing



MJ_Adapter-200-BOX



  • Offered in a Range of Sizes in Male JIC Thread Configurations
  • Zinc Plated to Prevent Corrosion
  • Clamping at the Fitting Prevents Loosening and Vibration Leaks



Clamp Installation Instructions

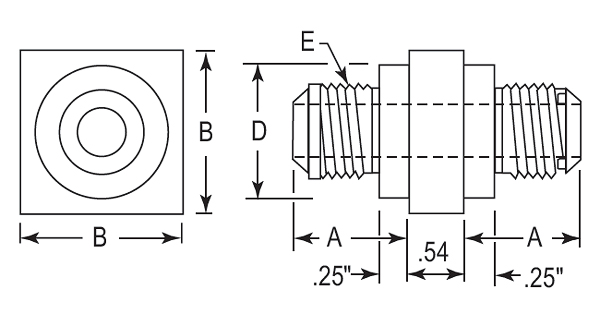

Diagram


Part # Tube
Size
Dimensions – inches E
(Thread)
A B D
1½” Series
MJA-1-04-B4 1/4 0.76 1.00 0.84 7/16″-20
MJA-1-06-B4 3/8 0.76 9/16″-18
MJA-1-08-B4 1/2 0.87 3/4″-16

2″ Series
MJA-2-04-B5 1/4 0.76 1.20 7/16″-20
MJA-2-06-B5 3/8 0.76 9/16″-18
MJA-2-08-B5 1/2 0.87 3/4″-16
MJA-2-10-B5 5/8 0.96 7/8″-14
MJA-2-12-B5 3/4 1.07 1-1/16″-12
MJA-2-14-B5 7/8 1.10 1-3/16″-12
MJA-2-16-B5 1 1.10 1-5/16″-12
