C2502 Series
Description: Compression x Female Pipe 90° Adapter
SAE: 080203
Similar Products
Parker – DBU
WeatherHead – 7455

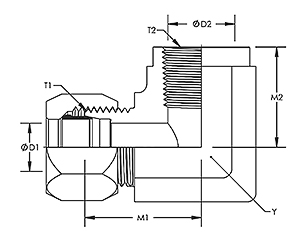

| HnF SKU | Y Hex | T1 | M1 | D1 | T2 | M2 | D2 |
| C2502-04-02 | 0.563 | 7/16-20 | 0.89 | 0.203 | 1/8-27 | 0.66 | 0.332 |
| C2502-04-04 | 0.750 | 7/16-20 | 1.03 | 0.203 | 1/4-18 | 0.88 | 0.438 |
| C2502-05-02 | 0.563 | 1/2-20 | 0.95 | 0.234 | 1/8-27 | 0.66 | 0.332 |
| C2502-06-04 | 0.750 | 9/16-18 | 1.05 | 0.281 | 1/4-18 | 0.88 | 0.438 |
| C2502-06-06 | 0.875 | 9/16-18 | 1.12 | 0.281 | 3/8-18 | 1.02 | 0.563 |
| C2502-08-04 | 0.875 | 3/4-16 | 1.23 | 0.422 | 1/4-18 | 1.01 | 0.438 |
| C2502-08-06 | 0.875 | 3/4-16 | 1.23 | 0.422 | 3/8-18 | 1.02 | 0.563 |
| C2502-08-08 | 1.063 | 3/4-16 | 1.35 | 0.422 | 1/2-14 | 1.23 | 0.703 |
| C2502-10-08 | 1.063 | 7/8-14 | 1.42 | 0.500 | 1/2-14 | 1.23 | 0.703 |
| C2502-12-12 | 1.313 | 1-1/16-12 | 1.58 | 0.656 | 3/4-14 | 1.36 | 0.906 |
| C2502-14-12 | 1.313 | 1-3/16-12 | 1.62 | 0.719 | 3/4-14 | 1.42 | 0.906 |
| C2502-16-16 | 1.625 | 1-5/16-12 | 1.73 | 0.875 | 1-11-1/2 | 1.62 | 1.141 |
