C6803 Series
Description:
Compression TEE with Male Boss Branch Adapter
SAE: 080429
Similar Products:
Parker – S5BU
WeatherHead – 7715

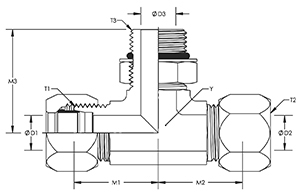

| HnF SKU | Y Hex | T1 | M1 | D1 | T2 | M2 | D2 | T3 | M3 | D3 |
| C6803-4-4-4 | 0.438 | 7/16-20 | 0.89 | 0.203 | 7/16-20 | 0.89 | 0.203 | 7/16-20 | 1.03 | 0.203 |
| C6803-6-6-6 | 0.563 | 9/16-18 | 1.05 | 0.281 | 9/16-18 | 1.05 | 0.281 | 9/16-18 | 1.25 | 0.281 |
| C6803-8-8-8 | 0.750 | 3/4-16 | 1.25 | 0.422 | 3/4-16 | 1.25 | 0.422 | 3/4-16 | 1.45 | 0.422 |
